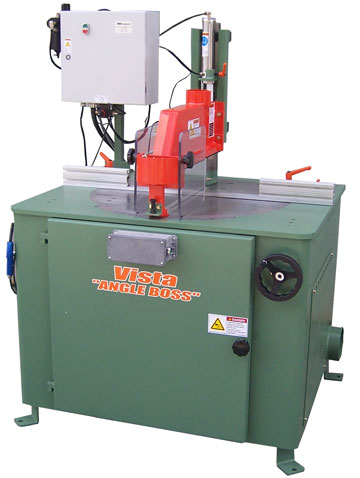

M-20
machines miter cut up to 75 degrees from 0 (90 degree cut).
Cut length on 2 x material with fence at standard position (single
point of cut) - 12 inches.
Typical cuts are: 90 deg.on 2x12s - 30 deg. on 2x10s - 45 deg. on
2x8s - 60 deg. on 2x6s - 70 deg. on 2x4s.
M-20 machines are
capable of cutting 2x6s on edge for bevel cuts. 4x4s cut with ease.
This is our base model
angle cutting machine.
Standard Equipment:
- 20" Carbide Tipped
Saw Blade
- 10 HP, tefc, 3 phase
arbor drive motor
- 2 Hand cycle control
- Magnetic starter in
dust proof enclosure
- Saw access door safety
switch
- "Quick Adjust Rod"
for proper clamp/guard height
- Large easy to read scales
0-75 or 90-15 degree
- Air filter/regulator/lubricator
- Air supply shut off
valve
- OSHA safety blow gun
Optional Equipment:
- Solid or roller infeed
& outfeed tables.
- Digital readout displays
angle with 1/10 degree accuracy
- Manual & Air operated
4" high x 9" long swing up material stops.
- CNC material stop gauge/feeder.
- Hydro-pneumatic control
of saw cutting speed for non-ferrous applications.
- Laser light (shows blade
position on top surface of workpiece with clamp/guard raised)
Only quality components
which are readily available from Vista Machines or any number of supply
houses across the country are used in the manufacture of "ANGLE
BOSS" cut off saws.
Made
with pride in the U.S.A.
